HSX Series Split Type Hydraulic Torque Wrench
The HSX split type hydraulic torque wrench is very suitable for the working conditions of punching nuts, especially the tightening of the drive shafts of automobiles and ships.
The HSX split low profile torque wrench is made of high-strength alloy steel. It is wear-resistant, anti-corrosive and durable, and it can ensure the smooth implementation of the project.
1, The HSX split low clearance wrench has a detachable head, and the radius of the head is also very small. The pin and shaft combination is easy to disassemble or assemble.
2, Since the HSX split low profile hydraulic torque wrench does not have a holding function, it is necessary to run the hydraulic pump in the return direction after using the JND wrench. After each cycle is completed, remove the wrench and reposition it.
3, HSX split hollow wrenches are double-packed, with aluminum-plastic boxes first and then wooden boxes. TorcStark stocks a large number of JND wrenches, which can be shipped immediately. The transportation time depends on the transportation method, and the shortest time is 3-5 days. TorcStark provides a one-year product warranty.

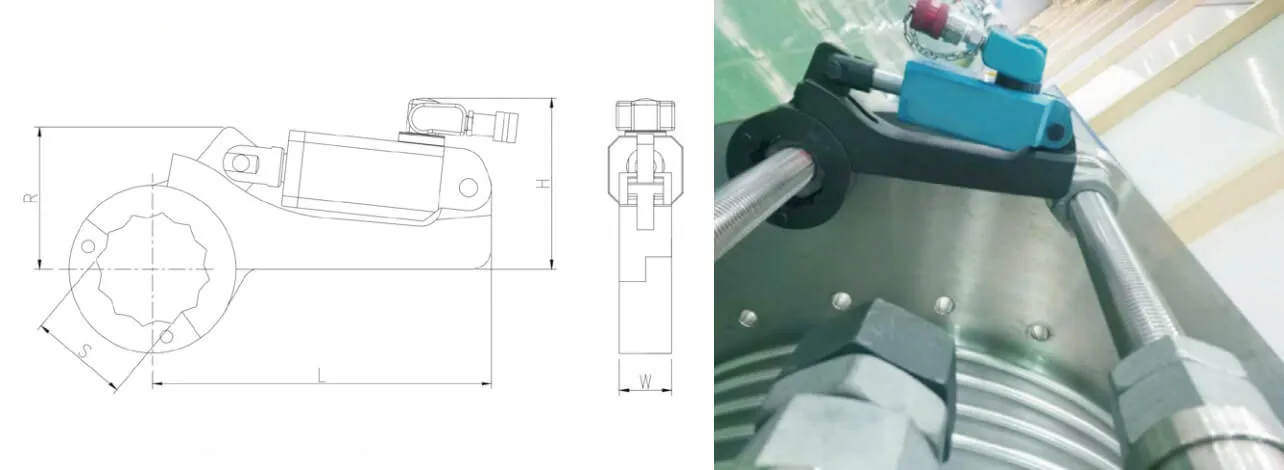

Dimensional Drawing
| Model | 3HSX | 8HSX | 10HSX | 14HSX | 20HSX | 30HSX | 35HSX |
| Torque(Nm) | 522 5258 | 1014 10140 | 1602 16023 | 1922 19228 | 2893 28937 | 4320 43200 | 5183 51835 |
| Weight(Kg) | 9 | 11 | 15 | 19 | 23 | 31 | 66 |
| L(mm) | 300 | 325 | 392 | 350 | 366 | 410 | 490 |
| H(mm) | 160 | 163 | 211 | 211 | 225 | 254 | 320 |
| W(mm) | 45 | 50 | 55 | 55 | 60 | 75 | 95 |
| R(mm) | 130 | 136 | 172 | 162 | 188 | 235 | 260 |
| S(mm) | 50-85 | 85-115 | 95-120 | 90-135 | 95-145 | 135-200 | 155-230 |
